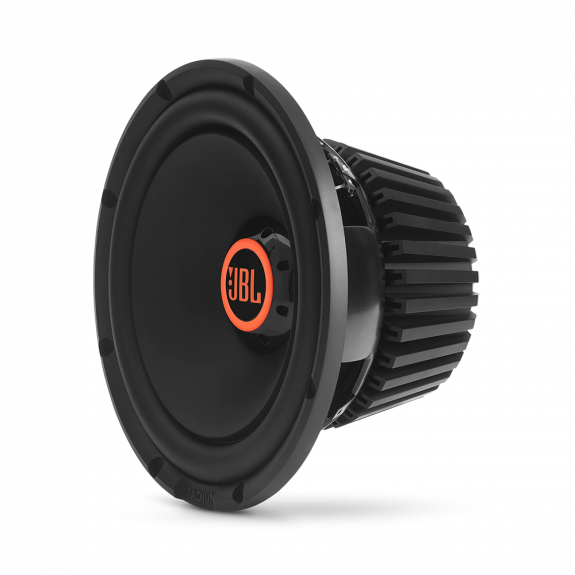

JBL Stadium 1224

12" (300mm) high-performance car audio subwoofers

Product Description


SSI™ (Selectable Smart Impedance)
Stadium subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. This allows for a variety of system configurations when using one subwoofer or multiples. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Aero-cooled voice coil
The Stadium’s voice coil significantly increases power handling and improves reliability by going with the flow—of air. The woofer’s motor channels air pumped by the cone movement past the voice coil, and the voice coil former exposes the coil’s inner and outer surfaces to the airflow. This aero-cooling design is unique among aftermarket subwoofers.
Oversized voice coil
The three-inch (75mm) voice coil proves you don’t have to be a heavyweight to pack a serious punch. It handles more power than conventional two-inch voice coils, yet it’s lighter than four-inch voice coils. It strikes the perfect balance between thermal power handling and low mass.
Premium screw-down terminals
Power is the lifeblood of any subwoofer. The terminals on the Stadium subwoofers accommodates 8 AWG wire (8.37mm2 cross section), which transfers low-resistance, low-loss power to the woofer, even over long wire runs. This ensures the subwoofer—and your music—has the power it needs.
A subwoofer that puts you in the driver’s seat.
JBL believes sound quality should never be compromised and the Stadium subwoofers make sure you don’t have to compromise flexibility, either. That’s because these high-performance subwoofers feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—providing multiple system configurations and flexibility. A special aero-cooling design keeps the voice coil cool even at high output levels. This feature coupled with oversized voice coils increases power handling and ensures long term reliability. More power, more reliability, more flexibility—and no compromises. When you’re ready to step up, Stadium is your subwoofer.

Technical Specifications

Additional Information

Show Buy Now Button Yes
SD Card test

Technical Specifications

Stadium 1224
General Specifications
Voice Coil Diameter3 in. (75mm)
Impedance2 or 4 ohms
Cutout Diameter11-1/8" (282mm)
Mounting Depth7" (177mm)
Audio Specifications
Power Handling500W RMS, 1500W peak
Sensitivity (@ 2.83V)92dB
Frequency Response25Hz – 175Hz
What's in the box
1 x subwoofer
1 x Owner’s manual
