Product Description
Details
Proprietary, shallow-profile woofer
The 8" (200mm) woofer in the BassPro SL is designed specifically to provide low distortion and great bass performance in an ABS enclosure with a remarkably compact footprint.
Efficient Class D amplifier
The amp that powers the BassPro SL produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.
Intelligent electronic design
The BassPro SL employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Crossover control
A manual crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassPro SL produces. Fine-tune the crossover to achieve a smooth transition from the BassPro SL to the rest of the system’s speakers.
Flexible EQ adjustments
Level control adjusts the BassPro SL’s volume to the other speakers in your system, while Bass Boost control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.
Line- and high-level inputs
For added installation flexibility, the BassPro SL features both line- and high-level inputs. If you use the high-level inputs to connect the BassPro SL to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.
Wired, remote level control capability
The BassPro SL is compatible with the JBL GTO-RBC (sold separately), which enables you to control the level remotely.
Big bass boost from a compact woofer enclosure

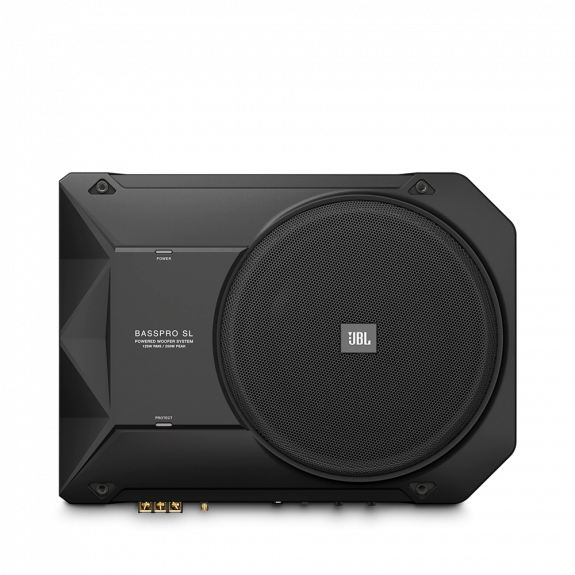

The BassPro SL powered woofer fits under the front seat of many vehicles, and supplements a car audio system’s full-range speakers with powerful bass. Its shallow-profile, 8" woofer delivers low-frequency enhancement from a slim-profile enclosure. A crossover control and flexible EQ adjustments let you tune the BassPro SL to your system, your car’s acoustic environment and your listening preferences. The energy-efficient amplifier keeps its cool while powering the woofer. High-pass filters and limiters ensure remarkable performance, and input options increase installation versatility. The BassPro SL delivers a lot of bass, without taking up a lot of space.
Technical Specifications
Additional Information
| Show Buy Now Button | Yes |
|---|---|
| SD Card | test |
Technical Specifications
BassPro SL
General Specifications
Amplifier Power125W RMS
Fuse20A
Maximum Current Draw12A
Quiescent Current Drawless than 800mA
Input Sensitivity0.2V – 2V Line-Level Input; 2V – 20V High-Level Input
Woofer200mm
Audio Specifications
Frequency Response35Hz – 120Hz
Crossover Frequency50Hz – 120Hz
Crossover Slope12dB/octave
Bass Boost0dB to +9dB @ 70Hz
Width250mm
Length344mm
What's in the box
1 powered woofer enclosure
4 mounting screws
Owner’s manual
