Product Description
Details
Acoustically damped, UV-resistant polypropylene cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Plus One™ woofer cone architecture
Patented Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.
I-Mount Tweeter Mounting Kit
The I-Mount™ (patent no. 5,859,917) tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes a flush cup and surface-mount mounting hardware. With a 1-3/4” cutout and a 1" mounting depth, installation becomes a snap. This allows the tweeter to be flush-mounted and can be angled up to ±40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.
Edge-driven Silk dome tweeter
The Club 422F,Club 522F,Club 622,Club 8622F,Club 9632 feature a full, edge-driven silk dome tweeter, which delivers a broader and smoother high frequency response , never-harsh regardless of output level than more commonly used w-domes.
Bigger magnet, Bigger power handling
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Competitive pricing
Club speakers provide signature JBL sound at affordable prices.
Pro Car Audio by JBL
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors,and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level.
Technical Specifications
Additional Information
| Show Buy Now Button | Yes |
|---|---|
| SD Card | test |
Technical Specifications

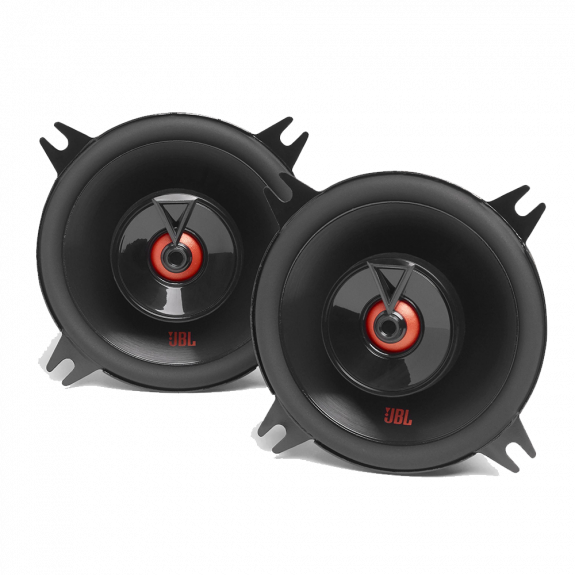

CLUB 422F
General Specifications
Power Handling35W RMS, 105W peak
Sensitivity (@ 2.83V)90dB
Impedance (ohms)3.0 ohms
Audio Specifications
Frequency Response75Hz – 20kHz
What's in the box
2 x Speakers
1 x Foam gasket
Owner’s manual
