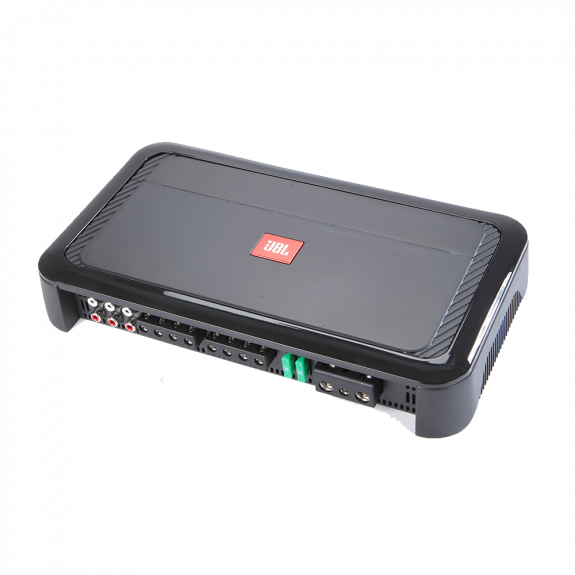

JBL Club A754

SKU: AMPCBA754
Club Series 4-channel car amplifier — 75 watts RMS x 4
$499.00

Product Description

Details

Compact size
The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
Input Level Control
When the low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
Value engineered car amplifier with JBL power and performance
The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.

Technical Specifications

Additional Information

Show Buy Now Button Yes
SD Card test

Technical Specifications

Stage Amplifier A754
Audio Specifications
75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
Variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
General Specifications
Preamp and speaker-level inputs
Preamp outputs
8-gauge power and ground leads recommended
WxHxD=320mm x 51.3mm x 180mm
What's in the box
1 x Club A754 four channel amplifier
4 x Bare wire-to-RCA adapters
4 x 30A ATO fuses (2 installed, 2 spare)
4 Mounting screws (M4 x 53mm)
2 x JBL stickers
1 x Owner's manual
