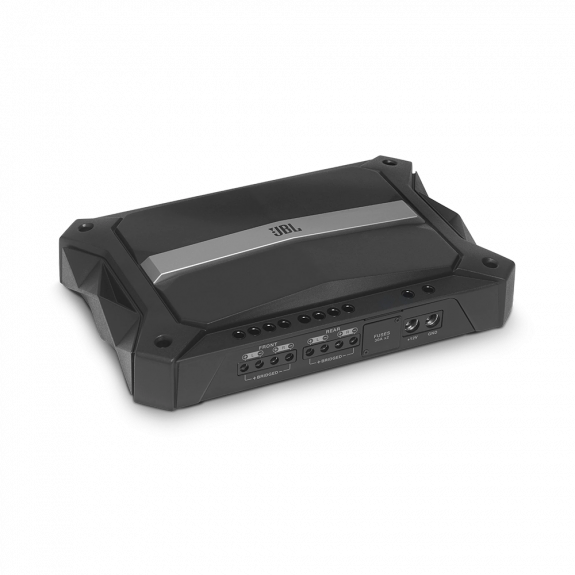

JBL Stadium 4

SKU: stadium4
High-performance multi-channel Class D amplifier
Sign up to get notified when this product is back in stock

Product Description


Class D Design
Every Stadium amplifier, including the full-range models, features high-efficiency Class D topology. This technology allows JBL to engineer amplifiers that are more compact, generate less heat, and draw less current from the vehicle's electrical system.
Low Distortion
JBL Stadium amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regarldess of output level.
Full On-Board Protection
JBL Stadium amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all five models to let the user know when one of these conditions exists.
Proprietary High-Conductivity Terminals
All JBL Stadium amplifiers come equipped with newly introduced E.A.R.L terminal for better grounding. For 5-channel and mono amplifiers, adapter connector is available in the box for easy installation.
Compact footprint
With it becoming more and more difficult to find spacious locations for amplifier mounting, JBL Stadium amplifiers have been developed in a small compact form factor to allow more location versatility.
Sleek design
Sometimes, an amp can be as stylish as it is powerful. JBL Stadium amplifiers have a clean, streamlined industrial design.
Full-Range Line Outputs
The full-range Stadium amplifiers (Stadium 5, Stadium 4 and Stadium 2) include full-range line outputs. This allows the audio signal to be routed to additional amplifiers or self-powered subwoofer solutions, increasing your system configuration options.
Uncover Great Sound (The Unveiling of Sound)
Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.

Technical Specifications

Additional Information

Show Buy Now Button Yes
SD Card test

Technical Specifications

Stadium 4
General Specifications
High-performance, mono Class D subwoofer
High-Efficiency, Low Distortion Class D
full-range, 4-channel
Audio Specifications
Max Power1500W Peak
Power Output, 2Ω120Wrms x 4, <0.1% THD+N
Power Output, 4Ω100Wrms x 4, <0.1% THD+N
Power Output, 4Ω Bridged240Wrms x 4, <0.3% THD+N
Signal-to-Noise Ratio>=80dB (ref 1W output @ 4Ω)
What's in the box
1x Amplifier
2x Differential Speaker-Level Adapter
1x E.A.R.L Terminal
1 x Owner’s manual
